Electric Factory
Electrical workshop
|
Electricalworkshop mainly produces all kinds of coil, wire rod and rotor magnetic pole for generator. Electrical manufactory covers an area of ??2500 square meters,of which more than 1400 square meters keep constant temperature and humidity, constant pressure, dustproof, to minimize production environment impact on product quality.
Electrical workshop has copper punching machine, magnetic pole coil pressing machine, ring coil numerical control pressing machine, hot air circulation oven, automatic electromagnetic wire straightening blanking machine and electrical insulation testing room. The most advanced numerical control automatic wire rod pressing machine in our country was newly introduced in 2006. It allows wire rod shaped under constant temperature into the mold and the process of heating, heat preservation, water cooling down and pressurization to be controlled automatically. Meanwhile, the electronic process records can be saved. The device can effectively improve internal quality of wire rod after hot curing,.In addition, a hot wire rod with cold depanning, can reduce the deformation after depanning and therefore fully guarantee quality and stability of the wire rod. |
 |
|
|
Equipment Name：Numerical controlmembrane press equipment Rated pressure：35/3MPa Rated discharge：0.5/15.5L/min power supply voltage：AC 380V Power of generator：1.5/1.5KW control voltage：DC 240V oil tank volume：500L |
|
|

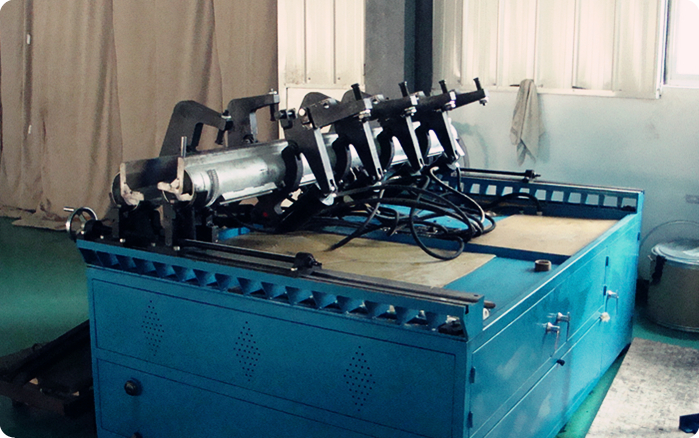

Equipment Name：semi-automatic hot pressing machine with box-shape coils Type：ZCN01A-1600 Voltage：～380V Power：6.0kW Working temperature：5～200℃ Working pressure：5～60kg/cm2 The length of the windings：260～1600mm The distance between the two windings：220～1200mm cross-section of the windings：＜35×70mm |
|
|
Equipment name：Double-pressing machine with converting coils bar Type：ZCN077 Maximum distance between two end of the coil：2200mm The distance between two pressing points：50mm The pressure of the hydraulic pumping station：31.5MPa |
|
|
Equipment name：Automatic cutting machine with electromagnetism Type：ZCN016 Scraping head type：350×30×4m/m Electrical heating power：4kW Scraping machine speed：2970r/min Wire wheel type：80×80×φ20 Scraping machine power：2.2kW Blowing rate of dust shaker：1700m3/h |
|
|
Equipment name：HD electric drying oven with forced convection Temperature controlling method:Adjusting power of the contactor Dimension of the operating room：3000×2500×1500mm Temperature fluctuation：≤±1℃ Temperature Uniformity：≤±2.5% |
 |
Electrical laboratory |
